Sarda Pipes & Fittings is famed as the most trusted Threaded Pipe Fittings Suppliers in India, Carbon Steel Threaded Pipe Fittings, Stainless Steel Threaded Pipe Fittings, Threaded Steel Threaded Pipe Fittings Suppliers, Industrial Threaded Pipe Fittings Manufacturers, The material used in the manufacturing of the Carbon Steel Threaded Pipe Fittings are of optimum quality that ensures notable features like high durability, strength and resistivity to abrasion and corrosion. Additionally, customers are eased with the availability of the Stainless Steel Threaded Pipe Fittings Fittings as per the Specifications and drawings provided by the clients. We hold expertise to manufacture and export an extensive range of Threaded Pipe Fittings, which is widely appreciated by our world wide clients.
Lowest Price In India Of Threaded Pipe Fittings, Manufacturers, Stockholder, Suppliers And Exporters Of Threaded Pipe Fittings, Threaded Elbow, Threaded 90° Elbow, Threaded 90° Elbow, Threaded 90° Elbow, Threaded Coupling, ASME / ANSI - B16.11 SS Threaded Pipe Fittings, Alloy Steel Threaded Fittings, ASME B16.11 CS Screwed Fittings Suppliers, Nickel Alloy Threaded Fittings.
Largest Threaded Pipe Fittings Manufacturers, Suppliers Of Carbon, Alloy, Stainless Steel Threaded Pipe Fittings Fittings, Carbon Steel Threaded Fittings, Stainless Steel Threaded Fittings, Alloy Steel Threaded Fittings, Duplex Steel Screwed-Threaded Fittings Manufacturers, ASME B16.11 SS Threaded Pipe Fittings.
Threaded FITTING THREADED TEE Specification:
Standard - ANSI/ASME :ASTM A182, ASTM SA182
Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97,90° Elbow
Size : 1/8" NB TO 4" NB
Class : 2000LBS, 3000LBS, 6000LBS
Type : Threaded Fitting Threaded 90° Elbow, Threaded Equal Threaded 90° Elbow, Threaded Unequal Threaded 90° Elbow
 |
 |
| Dimension | : | ANSI B 16.11 |
| Specification | : | ASTM A 182 |
| Size | : | 1/4" to 4" |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Range | : | Union, Threaded 90° Elbow, Elbow, Socket, Nipple, Coupling, Plug, Bushing, Weldolet, Threadolet, Sockolet. |
Threaded FITTINGS THREADED BS 3799 MATERIAL & GRADES :
Stainless Steel Threaded 90° Elbow : ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Carbon Steel Threaded 90° Elbow : ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Alloy Steel Threaded 90° Elbow : ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Duplex Steel Threaded 90° Elbow : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205
Super Duplex Threaded 90° Elbow : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S32750, S32950
Nickel Alloy Threaded 90° Elbow : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 625 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30).
Low Temperature Carbon Steel Threaded 90° Elbow : ASTM/ASME A420 SA/420 WPL3, WPL6
Materials and Grade:
Stainless Steel Threaded Fitting Threaded 90° Elbow:
ASTM / ASME SA 403 GR WP "S" / "W" / " WX"
304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.
Duplex Steel Threaded Fittings 90° Elbow:
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel Threaded Fitting Threaded 90° Elbow:
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Fitting Threaded 90° Elbow:
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Nickel Alloy Threaded Fitting Threaded 90° Elbow:
ASTM / ASME SB 336,
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Copper Alloy Steel Threaded Fittings 90° Elbow:
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

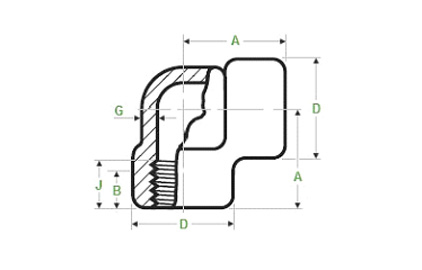

Threaded Fittings 90° Elbow Dimensions:
Dimensions NPS 1/2 to 4 - Class 2000
| NPS | Min Length of Thread |
Outside Dia of Band |
Minimum WT |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 33 | 3.18 | 28 | 22 |
| 3/4 | 12.7 | 13.9 | 38 | 3.18 | 33 | 25 |
| 1 | 14.7 | 17.3 | 46 | 3.68 | 38 | 28 |
| 1.1/4 | 17 | 18 | 56 | 3.89 | 44 | 33 |
| 1.1/2 | 17.8 | 18.4 | 62 | 4.01 | 51 | 35 |
| 2 | 19 | 19.2 | 75 | 4.27 | 60 | 43 |
| 2.1/2 | 23.6 | 28.9 | 92 | 5.61 | 76 | 52 |
| 3 | 25.9 | 30.5 | 109 | 5.99 | 86 | 64 |
| 4 | 27.7 | 33 | 146 | 6.55 | 106 | 79 |
Dimensions NPS 1/2 to 4 - Class 3000
| NPS | Min Length of Thread |
Outside Dia of Band |
Minimum WT |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 38 | 4.09 | 33 | 25 |
| 3/4 | 12.7 | 13.9 | 46 | 4.32 | 38 | 28 |
| 1 | 14.7 | 17.3 | 56 | 4.98 | 44 | 33 |
| 1.1/4 | 17 | 18 | 62 | 5.28 | 51 | 35 |
| 1.1/2 | 17.8 | 18.4 | 75 | 5.56 | 60 | 43 |
| 2 | 19 | 19.2 | 84 | 7.14 | 64 | 44 |
| 2.1/2 | 23.6 | 28.9 | 102 | 7.65 | 83 | 52 |
| 3 | 25.9 | 30.5 | 121 | 8.84 | 95 | 64 |
| 4 | 27.7 | 33 | 152 | 11.18 | 114 | 79 |
Dimensions NPS 1/2 to 4 - Class 6000
| NPS | Min Length of Thread |
Outside Dia of Band |
Minimum WT |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 46 | 8.15 | 38 | 28 |
| 3/4 | 12.7 | 13.9 | 56 | 8.53 | 44 | 33 |
| 1 | 14.7 | 17.3 | 62 | 9.93 | 51 | 35 |
| 1.1/4 | 17 | 18 | 75 | 10.59 | 60 | 43 |
| 1.1/2 | 17.8 | 18.4 | 84 | 11.07 | 64 | 44 |
| 2 | 19 | 19.2 | 102 | 12.09 | 83 | 52 |
| 2.1/2 | 23.6 | 28.9 | 121 | 15.29 | 95 | 64 |
| 3 | 25.9 | 30.5 | 146 | 16.64 | 106 | 79 |
| 4 | 27.7 | 33 | 152 | 18.67 | 114 | 79 |
Stock Of All Different Types Of Threaded Pipe Fittings :
|
|
Available Types Of Threaded Pipe Fittings At Lowest Price
|
|
Types of Threaded Screwed/Threaded Equal Threaded 90° Elbow :
| » | Threaded Screwed / Threaded 90° Elbow |
| » | Stainless Steel Threaded 90° Elbow Exporter |
| » | Duplex Steel Threaded Screwed Threaded 90° Elbow |
| » | Carbon Steel Threaded 90° Elbow |
| » | Alloy Steel Screwed Threaded 90° Elbow Supplier |
| » | Super Duplex Steel Threaded 90° Elbow |
| » | Copper Alloy Steel Screwed Threaded 90° Elbow |
| » | Nickel Alloy Threaded 90° Elbow |
| » | Mone Threaded Screwed Threaded 90° Elbow Dealer |
| » | SS A182 Class 6000 Threaded 90° Elbow |
| » | ASME B16.11 Threaded Screwed Threaded 90° Elbow |
| » | Hastelloy Threaded 90° Elbow |
| » | Inconel Screwed Threaded 90° Elbow Distributor |
| » | Titanium Threaded 90° Elbow |
| » | Incoloy Screwed Threaded 90° Elbow Manufacturer |
| » | SS ANSI B16.11 Threaded 90° Elbow |
| » | BS3799 Threaded Screwed Threaded 90° Elbow Stockiest |
| » | Class 3000 Lbs SS Threaded 90° Elbow |
| » | SS ASTM A182 Threaded Screwed Equal Threaded 90° Elbow |
| » | Class 2000 Lbs Threaded 90° Elbow Exporter |
We are having our sub dealers & distributor with adequate stock of Stainless Steel Buttweld Fittings in India, United States, UK, Italy, Canada, UAE, Iran, South Korea, Indonesia, Saudi Arabia, Germany, Malaysia, Thailand, Venezuela, Spain, Mexico, Turkey, Poland, France, Australia, Singapore, Brazil, Netherlands, Russia, Vietnam, Colombia, Bangladesh, South Africa, Russia, Vietnam, Oman, Austria, Philippines, Qatar, Chile, China, Belgium, Zambia, Romania, China, Japan, Myanmar, Taiwan, Jordan, China, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia, Malta, Italy, United Kingdom (Uk), Spain, Ukraine, Netherland, The Republic Of Congo, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Israel, Czechia, Albania, Australia, Perth, Tanzania, Finland, Belgium, Greece, Czech Republic, Ireland, Croatia, Slovenia, Equatorial Guinea, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Switzerland, Slovakia, Tunisia, Nigeria, Algeria, Angola, South Africa, Libya, Gabon, Philippines & Sudan for quick delivery of Stainless Steel Buttweld Fittings with mill certificate & all required documents.
Origin : Indian Origin, Japanese Origin, Korean Origin, European Origin, US Origin, Ukraine Origin, Russian Origin
We offer fastest delivery of Stainless Steel Buttweld Fittings in Mumbai, Lucknow, Coimbatore, Imphal, Mysore, Ratlam, Delhi, Kanpur, Darjeeling, Jalandhar, Nagpur, Solapur, Kolkata, Allahabad, Kakinada, Jammu, Nashik, Srinagar, Chennai, Ahmedabad, Faridabad, Jamshedpur, Bhadravati, Chattisgarh, Durgapur, Asansol, Hospet, Haryana, Visakhapatnam, Nellore, Surat, Bangalore, Chandigarh, Ghaziabad, Jhansi, Patna, Siliguri, Hyderabad, Amritsar, Noida, Kochi, Pune, Thiruvanthapuram, Jaipur, Aizawl, Guwahati, Kozhikode, Raipur, Vishakhapatnam, Jabalpur, Bhopal, Gwalior, Ludhiana, Rajahmundry, Thane, Agra, Bhubaneshwar, Gurgaon, Madurai, Rajkot, Varanasi, Bhilai, Haridwar, Meerut, Ranchi, Ahmednagar, Akola, Amravati, Aurangabad, Baramati, Beed, Bhandara, Bhiwandi, Buldhana, Chandrapur, Chimur, Dahanu, Dhule, Dindori, Erandol, Gadchiroli, Hatkanangle, Hingoli, Ichalkaranji, Jalgaon, Jalna, Salem, Karad, Khed, Yavatmal, Kolaba, Kolhapur, Kopargaon, Latur, Malegaon, Mumbai, Nagpur, Nanded, Nandurbar, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Rajapur, Ramtek, Ratnagiri, Raver, Sangli, Satara, Shirdi, Shirur, Solapur, Thane, Wardha, Washim, Andhra Pradesh, Jammu and Kashmir, Nagaland, Uttarakhand, Haryana, Lakshadweep, Arunachal Pradesh, Jharkhand, Odisha, West Bengal, Himachal Pradesh, Assam, Karnataka, Punjab, Andaman and Nicobar Islands, Puducherry, Bihar, Kerala, Rajasthan, Chandigarh, Meghalaya, Chhattisgarh, Madhya Pradesh, Sikkim, Dadar and Nagar Haveli, Mizoram, Goa, Maharashtra, Tamil Nadu, Daman and Diu, Tripura, Gujarat, Manipur, Telangana, Delhi and Uttar Pradesh in India.
