Sarda Pipes & Fittings is famed as the most trusted Socket Weld Fittings Suppliers in India, Carbon Steel Socket Weld Fittings, Stainless Steel Socket Weld Fittings, Forged Steel Fittings Suppliers, Industrial Socket Weld Fittings Manufacturers, The material used in the manufacturing of the Carbon Steel Socket Weld Fittings are of optimum quality that ensures notable features like high durability, strength and resistivity to abrasion and corrosion. Additionally, customers are eased with the availability of the Stainless Steel Socket Weld Fittings Fittings as per the Specifications and drawings provided by the clients. We hold expertise to manufacture and export an extensive range of Socket Weld Fittings, which is widely appreciated by our world wide clientele.
Sarda Piping & Fittings is one of the prominent manufacturer, exporter and supplier of forged socket weld fittings manufactured in accordance to ASME B16.11. Forged socket weld fittings are available ex-stock in all major stainless Steel grades (ASTM A182 F316L, F304L), carbon Steel and alloy Steel grades. We offer various types of socket weld fittings including socket weld elbow, socket weld 90° Elbows, socket weld 90° Elbow etc. Socket weld fittings are widely used in piping systems a90° Elbow major industries such as petrochemicals, power generation, ship building, diary industry, breweries, waste water treatment, chemical, pharmaceuticals and others. Socket weld fittings are available in pressure ratings of class 3000, 6000 and 9000. We are constantly adding to our diverse product range in order to better serve our valued customers.
Lowest Price In India Of Socket Weld Fittings. Manufacturers, Stockholder, Suppliers And Exporters Of Socket Weld Fittings, Socket Weld Elbow, Socket Weld 90° Elbow, Socket Weld 90° Elbow, Socket Weld 90° Elbow, Socket Weld Coupling.
Largest Socket Weld Fittings Manufacturers, Suppliers. Carbon, Alloy, Stainless Steel Forged Socket Weld Fittings, Manufacturers And Exporters Of High Quality Socket Weld Fittings – Asme B16.11, Stainless Steel Forged Socket Weld Fittings, Carbon Steel Forged Socket Weld Fittings Manufacturers.
High Pressure Socket Weld Forged Fittings
Pressure Class | 3000LBS, 6000LBS, 9000LBS |
Products | Elbow 90 Degree, Elbow 45 Degree,Tee, Cross, Union, Coupling, 90° Elbow, Cap, 90° Elbow, Outlet, Welding Outlet, Insert |
Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8″~4″ (DN6~DN100) |
Stainless Steel Socket Weld PIPE FITTINGS AVAILABLE IN BELOW STANDARD AND Materials
Specification | ASTM A182, ASME SA182 |
Grade | 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
Type | Socket Weld (S/W) & SCREWED (SCRD) – Threaded – NPT, BSP, BSPT |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/4"NB T0 4"NB.(Socketweld & Threaded) |
Class | 3000#, 6000#, 9000#. |
Pressure | 1000#,2000#,3000#, 6000#,9000# |
Forged Pipe Fittings Manufacturing Standards
ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Buttwelding Fittings
ASME B16.11 – Forged Fittings, Socket – Welding and Threaded
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 – Swage(d) Nipples and Bull Plugs
BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
Forged Socket Weld Stainless Steel Fittings
Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
- The material for forged stainless Steel fittings conforms to ASME A182
- The dimensions for forged stainless Steel fittings conform to ASME B16.11
Forged Socket Weld Carbon Steel Fittings
Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
- The material for forged carbon Steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon Steel fittings conform to ASME B16.11
Types:
Materials and Grade:
Stainless Steel Socket Weld 90° Elbow:
Duplex Steel Socket Weld 90° Elbow:
Carbon Steel Socket Weld 90° Elbow:
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Socket Weld 90° Elbow:
Nickel Alloy Socket Weld 90° Elbow:
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Copper Alloy Steel Socket Weld 90° Elbow:
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Socket Weld Fittings 90° Elbow Dimensions:
Nominal Diameter |
Depth of Socket |
Dimension of Socket |
Wall Thickness |
Center to Bottom of Socket |
||||||||
A |
||||||||||||
Cmin |
90°Elbow |
|||||||||||
DN |
NPS |
Jmin |
d1 |
3000LB Sch80 |
6000LB Sch160 |
9000LB XXS |
3000LB Sch80 |
6000LB Sch160 |
9000LB XXS |
|||
6 |
1/8 |
10 |
10.7 | 3.2 |
3.5 |
- |
11 |
11 |
- |
|||
8 | 1/4 | 10 | 14.1 | 3.3 | 4.0 | - | 11 | 15 | - | |||
10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 13 | 15 | - | |||
15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 16 | 19 | 25 | |||
20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 19 | 22 | 28 | |||
25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 22 | 27 | 32 | |||
32 | 1.1/4 | 13 | 42.9 | 5.3 | 7.0 | 10.6 | 27 | 32 | 35 | |||
40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 32 | 38 | 38 | |||
50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 38 | 41 | 41 | |||
65 | 2.1/2 | 16 | 76.9(73.8) | 7.7 | 12.5 | - | 41 | 57 | - | |||
80 |
3 | 16 | 89.8 | 8.3 | 13.8 |
- |
57 | 64 | - | |||
100 |
4 |
19 |
115.5 | 9.4 |
- |
- |
66 |
- |
- |

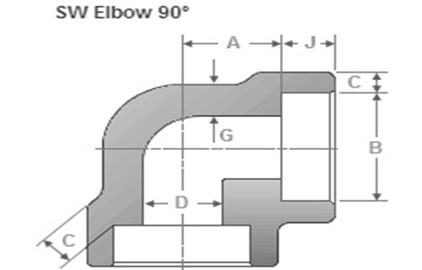

Dimensions Socket Weld Elbows - NPS 1/2 to 2 - 90° - 6000 LBS - ASME B16.11
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Body wall thickness |
Center to bottom of socket A |
B | J | D | C | G | 90° | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 | 19.5 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 | 22.5 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 | 27 |
1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 | 32 |
1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 | 38 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 | 41 |
Price List Of Socket Weld Fittings
- stainless Steel fractional socket weld fittings
US $3-30 / Piece (FOB Price) - raw material Stainless Steel Socket Weld pipe fittings
US $1-100 / Piece(FOB Price) - SS304 Welding Socket Pipe Fittings
US $4-53 / Piece(FOB Price) - Forged High Pressure Pipe Fittings Socket Weld Carbon Steel Straight Cross
US $3.49 / Pieces(FOB Price) - ANSI B16.11 Socket Welding 90 Degree equal elbow/pipe fittings bend
US $1-100 / Piece(FOB Price) - socket weld forged fittings/elbow a105
US $0.01-100 / Piece(FOB Price) - Socket welded pipe fittings
US $2-10 / Piece(FOB Price) - High Pressure Pipe Fittings Socket Weld stainless Steel Cross
US $0.1-30 / Piece(FOB Price) - high quality Stainless Threaded and Socket Weld pipe fittings
US $1-5 / Piece(FOB Price) - 3000lb A105 carbon Steel 90 degree socket weld forged pipe fittings elbow
US $2.8-4.9 / Unit(FOB Price) - 90 degree 6 inch carbon Steel socket weld elbow connector pipe fittings
US $1-20 / Piece(FOB Price) - socket weld plug fittings
US $0.1-0.25 / Piece(FOB Price) - Stainless Steel Fittings Socket Weld Sockolet Cross
US $7.2-8.2 / Piece(FOB Price) - Alloy socket weld reducing Cross pipe fittings
US $80.0 / Piece(FOB Price) - Stainless Steel Socket Weld Cross swagelok compression fittings Cross
US $0.43-0.69 / Pieces(FOB Price) - ss316 DN12 equal straight reducing socket weld pipe fittings
US $3.5-50.5 / Piece(FOB Price) - ANSI B16.11 Socket Welding 90 Degree equal elbow/pipe fittings bend
US $1-100 / Piece(FOB Price) - Socket Weld Fittings Dimensions
US $2.8-146 / Piece(FOB Price) - threaded pipe fittings Socket Weld Cross (Socket Weld Pipe Fittings)
US $0.1-1 / Piece(FOB Price) - bend 6 way pipe fittings socket weld and thread pipe fittings
US $1-20 / Piece(FOB Price) - carbon Steel socket welded threaded pipe fittings
US $0.5-100 / Set(FOB Price) - pipe fittings socket weld reducer Cross
US $0.04-5.34 / Piece(FOB Price) - Best price High quality 90 degree socket weld elbow pipe fittings
US $1-10 / Piece(FOB Price) - ASME B16.11 Long Radius Socket Weld Elbow Forged Pipe Fittings
US $0.5-50 / Piece(FOB Price) - Socket Weld Female Pipe Fittings Lateral Equal Cross
US $0.9-29.9 / Piece(FOB Price) - Forged carbon Steel Threaded/Socket weld Cross /pipe fittings
US $0.1-15 / Piece(FOB Price) - Socket Welding Stainless Steel Pipe Fittings
1 Metric Ton (Min. Order)(FOB Price) - A105 socket weld carbon Steel fittings suppliers
US $0.01-99.99 / Piece(FOB Price)
