End Cap Manufacturer / Suppliers / Expoters / In India

PIPE END CAPS MANUFACTURERS / EXPORTERS / SUPPLIERS IN INDIA

ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 CARBON, ALLOY, STAINLESS STEEL PIPE END CAPS MANUFACTURER / EXPORTER / SUPPLIER IN INDIA

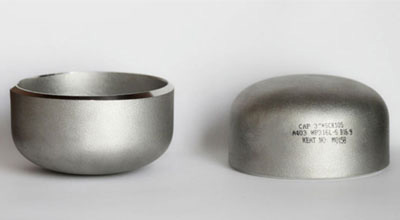

Steel Pipe End Caps are the pipe fittings, which are mainly used as a plug to cover the end of a pipe. We can manufacture and supply pipe end caps in standard sizes, as well as in accordance with specification of our customers.

We manufactured various grades of pipe end caps includes 304/304L, 316/316L, 321, 347, 317L, 310S, 904L, Duplex, Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600.

Sarda Pipes & Fittings is a leading Manufacturer, Exporter and Supplier of ASME B16.9 Buttweld Pipe End Caps. Buttweld Pipe End Caps manufactured using superior grade raw materials. Sarda Pipes & Fittings supply steel pipe end caps and high quality products to international traders, companies and international stockholders in the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.

buttweld asme b169 end cap manufacturer suppliers india

Pipe End Cap Production Range

Outside Diameter : 1/2″ – 48″

Wall Thickness: 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

ASME B16.9 – Factory-Made Wrought Fittings Buttwelding

ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns

MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe End Cap Material Grades

Stainless Steel Pipe End Cap; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Pipe End Cap: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe End Cap: ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe End Cap: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Pipe End Cap: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Pipe End Cap: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (Inconel 625), UNS 10276 ( HASTELLOY C 276 )

Type	:	Butt weld (BW)
Standards	:	ASME / ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Dimension	:	ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Thickness	:	Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Schedule	:	Sch 5 TO Sch XXS.
Size	:	1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”)

Materials and Grade:

Stainless Steel Pipe End Cap:

ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Carbon Steel Pipe End Cap:

ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2

Nickel Alloy Pipe End Cap:

Monel 400 & 500,
Inconel 600 & 625,
Incolloy 800, 825,
Hastelloy C22, C276,
Hastelloy,
Nickel,
Monel,
Inconel,
Alloy20,
Copper Nickel
Cupro-Nickel 90/10
Cupro-Nickel 70/30

Alloy Steel Pipe End Cap:

ASTM a234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91

CAPS - ANSI B 16.9 dimension
inches	mm	Height
inches	mm	D	E
1/2	15	21,34	25,40
3/4	20	26,67	31,75
	25	33,40	38,10
1 1/4	32	42,16	38,10
1 1/2	40	48,26	38,10
2	50	60,32	38,10
2 1/2	65	73,02	38,10
3	80	88,90	50,80
3 1/2	90	101,60	63,50
4	100	114,30	63,50
5	125	141,30	76,20
6	150	168,27	88,90
8	200	219,07	101,60
10	250	273,05	127,00
12	300	323,85	152,40
14	350	355,60	165,10
16	400	406,40	177,80
18	450	457,20	203,20
20	500	508,00	228,60
22	550	558,80	254,00
24	600	609,60	266,70
28	700	711,20	266,70
Dimension in mm

ASME B16.9 Butt weld End Cap Dimensional Tolerances

DIMENSIONAL TOLERANCES - CAPS
For all fittings				Caps
Nominal Pipe Size (NPS)	Outside Ø at Bevel	Inside Ø at End	Wall Thickness t / t1	Overall Length E
1/2 a 2 1/2	1	0,8	Not	4
3 a 3 1/2	1	1,6	less	4
4	+2 -1	1,6	than	4
5 a 6	+3 -1	1,6	87,50%	7
8	2	1,6	of nominal	7
10	+4 -3	3,2	tickness	7
12 a 18	+4 -3	3,2		7
20 a 24	+6 -5	4,8		7
26 a 30	+7 -5	4,8		10
32 a 48	+7 -5	4,8		10

Sarda Pipe & Fittings is one of the most recognised manufacturers, suppliers and exporters in India of Pipe End Cap. We are manufacturing Stainless Steel pipe end cap, alloy steel pipe end cap and carbon steel pipe end cap at best cost in India due to our unique association of stainless steel, alloy steel, carbon steel row material supplier, prime location of our factory and latest/advanced equipment.
